Conductor
Material Oxygen-free copper (99.97%)
Diameter 0.81 mm±0.1 mm (0.03″±0.004″)
Wire Gauge 20AWG
Insulation
Material FPE
Thickness ≥1.4 mm (0.06″)
Diameter 3.7 mm±0.20 mm (0.15″±0.008″)
Color White
Inner Shield
Material Aluminum foil
Specification T≥0.026, W: 15±1 mm (0.59″±0.04″)
Overlap Rate ≥25%
Outer Shield
Material Copper clad aluminum
Specification 16 × 4 × 0.12 mm±0.01 mm (0.005″±0.0004″)
Shield Coverage ≥60%
Sheath
Material PVC
Thickness ≥0.95 mm (0.04″)
Diameter 6.1 mm±0.30 mm (0.24″±0.01″)
Color Black semi-polished
Electrical
Max. DC Resistance of Inner
Conductor ≤33.9Ω/km
Dielectric Strength Not breakdown with 2kV DC for 1 min
Sheath Strength Not breakdown with 3kV
Characteristic Resistance 75Ω±5Ω
Insulation Resistance 5000MΩ•km
Mechanical
Elongation at Break (Wire) ≥15%
Elongation at Break (Sheath) ≥150%
Environment
Low Temperature Bending Not cracked
Thermal Shock Not cracked
Operating Temperature –20°C to +60°C (–4°F to 140°F)
Storage Temperature –10°C to +40°C (14°F to 104°F)

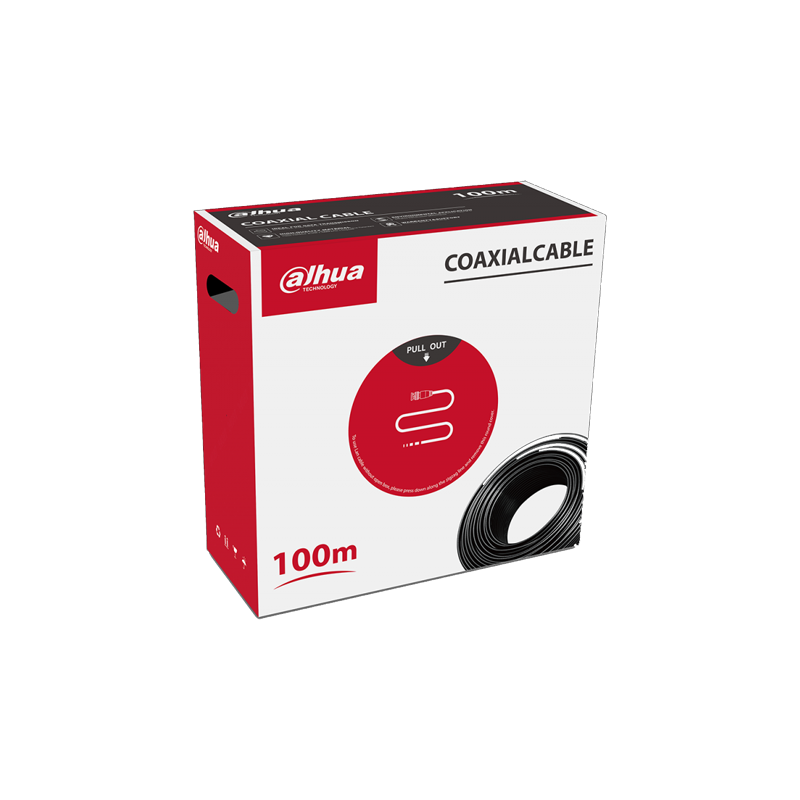

Package
Length 100 m±1 m (328 ft±3.28 ft)
Packaging Dimensions 255 mm × 135 mm × 265 mm (10.04″ × 5.32″ × 10.43″)
(L × W × H)
Net Weight 3.6 kg±0.4 kg (7.94 lb±0.88 lb)
