CCTV Accessories, XVR/DVR

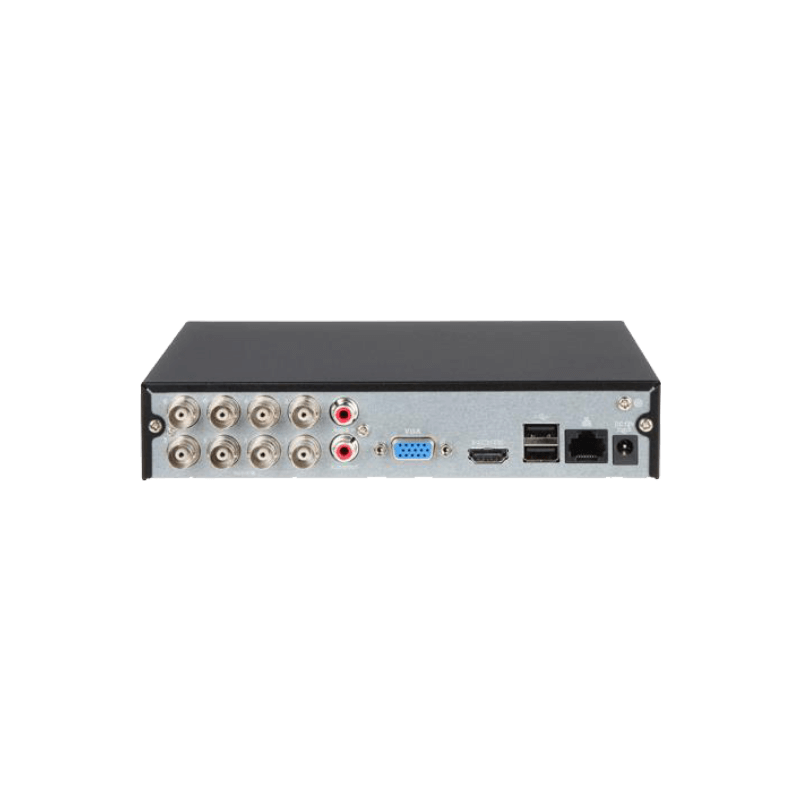

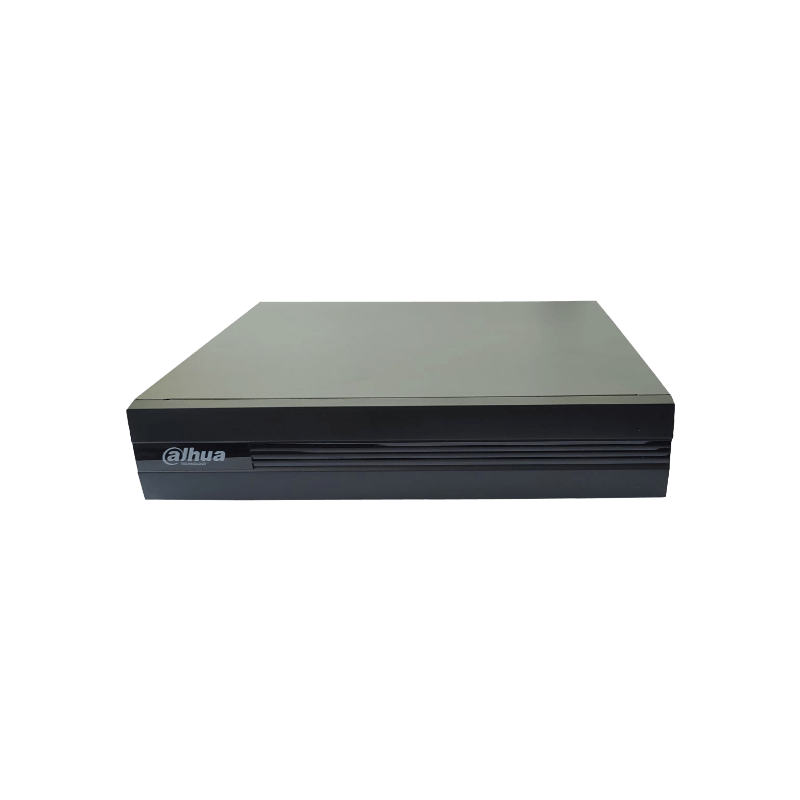

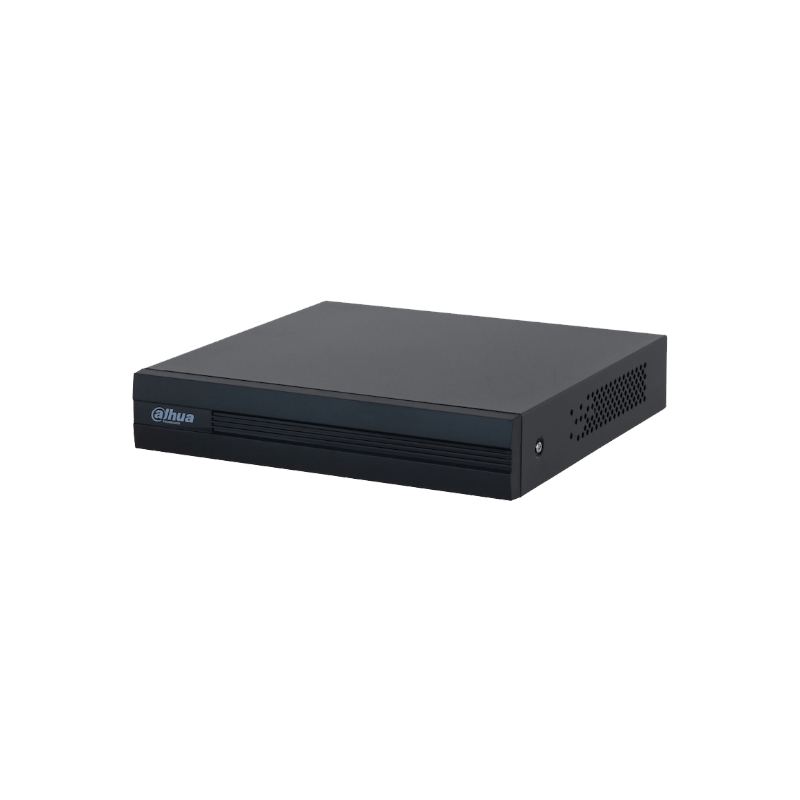

DAHUA DH-XVR1B08-I(V2.0) 8CH XVR(2y)
Main Processor : Embedded processor
Performance : 4 channels
HDCVI Camera Input : 1080p@ 25/30 fps, 720p@25/30 fps
AHD Camera Input : 1080p@ 25/30 fps, 720p@ 25/30 fps
TVI Camera Input : 1080p@25/30 fps, 720p@25/30 fps
Audio In/Out : 1/1, RCA
Two-way Talk : Reuse audio in/out, RCA
Resolution : 1080N; 720p; 960H; D1; CIF
Interface : 1 HDMI; 1 VGA
2 Year Warranty
LKR 15,000
Compare| System | |
| Main Processor | : Embedded processor |
| Operating System | : Embedded linux |
| SMD Plus | |
| Performance | : 4 channels |
| AI Search | : Search by target classification (Human, Vehicle) |
| Video and Audio | |
| Analog Camera Input | : 8 channels, BNC |
| HDCVI Camera Input | : 1080p@ 25/30 fps, 720p@25/30 fps |
| AHD Camera Input | : 1080p@ 25/30 fps, 720p@ 25/30 fps |
| TVI Camera Input | : 1080p@25/30 fps, 720p@25/30 fps |
| CVBS Camera Input | : PAL/NTSC |
| IP Camera Input | : 8+2 channels, each channel up to 6MP |
| Two-way Talk | : Reuse audio in/out, RCA |
| Recording | |
| Compression | : AI Coding/H.265+/H.265/H.264+/H.264 |
| Resolution | : 1080N; 720p; 960H; D1; CIF |
| Record Rate | |
| Main Stream | : 8-channel: the 1st channel 1080N/720p(1 fps–25/30 fps), others 1080N/720p(1 fps–15 fps); 960H/D1/CIF/(1 fps–25/30 fps) |
| Sub stream | : 8-channel: CIF (1 fps–7 fps) |
| Bit Rate | : 32 kbps–4096 kbps per channel |
| Record Mode | : Manual; Schedule (General, Continuous); MD (Video detection: Motion Detection, Video Loss, Tampering); Alarm; Stop |
| Record Interval | : 1 min– 60 min (default: 60 min), Pre-record: 1 s–30 s, Post-record: 10 s–300 s |
| Audio Compression | : G.711A; G.711U; PCM |
| Audio Sample Rate | : 8 KHz, 16 bit per channel |
| Audio Bit Rate | : 64 kbps per channel |
| Display | |
| Interface | : 1 HDMI; 1 VGA |
| Resolution | : 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Multi-screen Display | : When IP extension mode not enabled: 1/4/8/9
: When IP extension mode enabled: 1/4/8/9/16 |
| OSD | : Camera title; Time; Video loss; Camera lock; Motion detection; Recording |
| Interface | : 1 RJ-45 Port (100 Mbps) |
| Network Protocol | : HTTP; HTTPS; TCP/IP; IPv4/IPv6; Wi-Fi; 3G/4G; SNMP; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; P2P; IP Search |
| Max. User Access | : 128 users |
| Smart Phone | : iPhone; iPad; Android |
| Interoperability | : ONVIF 16.12, CGI Conformant |
| Video Detection and Alarm | |
| Trigger Events | : Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
| Video Detection | : Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis |
| Alarm input | : N/A |
| Relay Output | : N/A |
| Playback and Backup | |
| Playback | : 1/4/9 |
| Search Mode | : Time/Date; Alarm; MD and Exact Search (accurate to second) |
| Playback Function | : Play; Pause; Stop; Rewind; Fast play; Slow Play; Next File; Previous File; Next Camera; Previous Camera; Full Screen; Repeat; Shuffle; Backup Selection; Digital Zoom |
| Backup Mode | : USB Device/Network |
| Storage | |
| Internal HDD | : 1 SATA port, up to 6 TB capacity |
| eSATA | : N/A |
| Auxiliary Interface | |
| USB | : 2 USB ports (USB 2.0) |
| RS485 | : N/A |
| RS232 | : N/A |
| Electrical | |
| Power Supply | : DC 12 V/1.5 A |
| Power Consumption (Without HDD) |
: < 7 W |
| Construction | |
| Dimensions | : Cooper 1U, 198 mm × 202.9 mm × 41.5 mm (7.81” × 7.99” × 1.63”) |
| Net Weight (without HDD) |
: 0.62 kg (1.37 lb) |
| Gross Weight | : 1.13 kg (2.49 lb) |
| Installation | : Desktop installation |
