Scanner Type | Flatbed |
Scanner Element | CIS (Colour Contact Image Sensor) |
Light Source | 3-colour (RGB) LED |
Optical Resolution*1 | 4800 x 4800dpi |
Selectable Resolution*2 | 25 – 19200dpi |
Scanning Bit Depth | |
Grayscale | 16-bit input 8-bit output |
Colour | 48-bit input (16-bit for each colour) Win: [48 or 24-bit output (16-bit or 8-bit for each colour)] Mac: [24-bit output (8-bit for each colour)] *48-bit: Windows TWAIN Driver only |
Scanner Speed | |
Preview Speed*3 | Approx. 7 sec |
Scan Speed*4 | |
Colour A4, 300dpi | Approx. 8 sec |
Colour 4×6, 300dpi | Approx. 4 sec |
Scanning Speed*5 (Reflective) |
|
Grayscale, B&W | 8.2msec/line (4800 dpi) 4.3msec/line (2400 dpi) 2.2msec/line (1200 dpi) 1.3msec/line (600 dpi) 1.7msec/line (300 dpi) |
Colour | 25.4msec/line (4800 dpi) 14.8msec/line (2400 dpi) 6.6msec/line (1200 dpi) 3.8msec/line (600 dpi) 1.7msec/line (300 dpi) |
Maximum Document Size | A4 / Letter (216 x 297mm) |

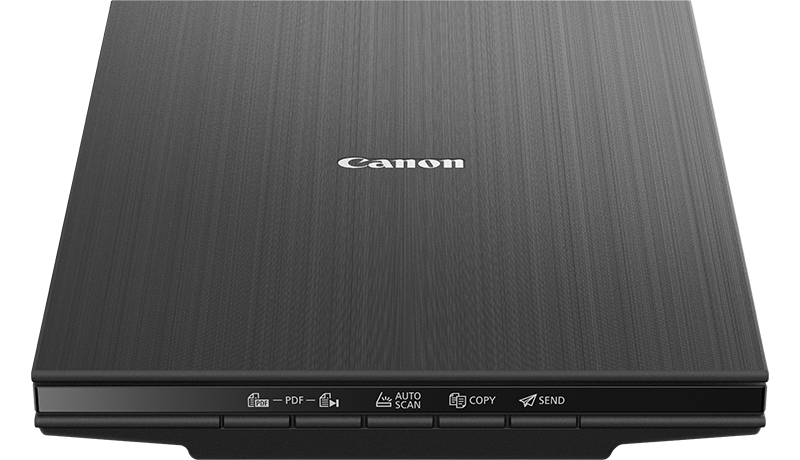

Scanner Buttons (EZ Buttons) | 5 buttons (PDF x 2, AUTOSCAN, COPY, SEND) |
Interface | USB 2.0 Hi-Speed Type-C |
System Requirements*6 | Windows 10 / 8.1 / 7 SP1 Mac OS 10.12 ~10.13, Mac OS X v10.11.6 |
Operating Environment | |
Temperature | 5 – 35°C |
Humidity | 10 – 90% RH (no dew condensation) |
Power Supply | Supplied via USB port |
Power Consumption | |
Maximum during operation | approx. 4.5W |
Stand-by | approx. 0.3W |
Environment | |
Regulation | RoHS (EU, China), WEEE (EU) |
Eco-label | Energy Star |
Dimension (WxDxH) | 250×367×42mm |
Weight | 1.7kg |
Specifications are subject to change without notice.
- Optical resolution is a measure of maximum hardware sampling resolution, based on ISO 14473 standard.
- Increasing the scanning resolution will limit the maximum possible scanning area.
- Pre-processing time is not included.
- Connecting the bundled USB cable to the port corresponding to USB3.0 and above on PC. Colour document scan speed: (Colour A4, 300dpi) is measured with ISO/IEC 29183 Target-A. Colour photo scan speed: (4×6″, 300dpi) is measured with ISO//JIS SCID No.2. Scan speed indicates the time measured between pressing the scan button of the scanner driver and the on-screen status display turns off. Scan speed may vary depending on system configuration, interface, software, scan mode settings and document size etc.
- The fastest speed in Hi-Speed USB on Windows PC. Transfer time to computer is not included.
- To confirm OS compatibility and download the latest driver updates, please visit Canon Support page.
NOTE:
TWAIN driver (ScanGear) is based on the TWAIN specification V1.9 and requires the Data Source Manager comes with the operating system.
